Many energy standards (e.g., ASHRAE 90.1) require façade systems to achieve U-values of 1.4–2.0 W/m²·K, which is difficult to meet without thermal break design.
Poor insulation can increase HVAC energy demand by 20–40%, especially in extreme climate zones.

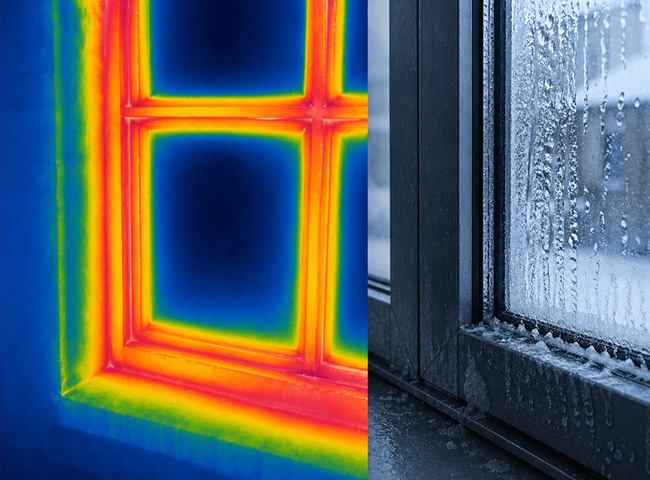

Thermal bridging can increase condensation-related risks by over 50%, leading to mold growth, insulation failure, and long-term material deterioration.
Thermal bridge reduction is achieved through optimized profile design and insulation integration.
We use industry-leading PA66GF25 reinforced glass fiber strips to ensure structural stability and superior insulation.
Our profiles feature internal multi-cavity designs that trap air, significantly reducing convective heat transfer.

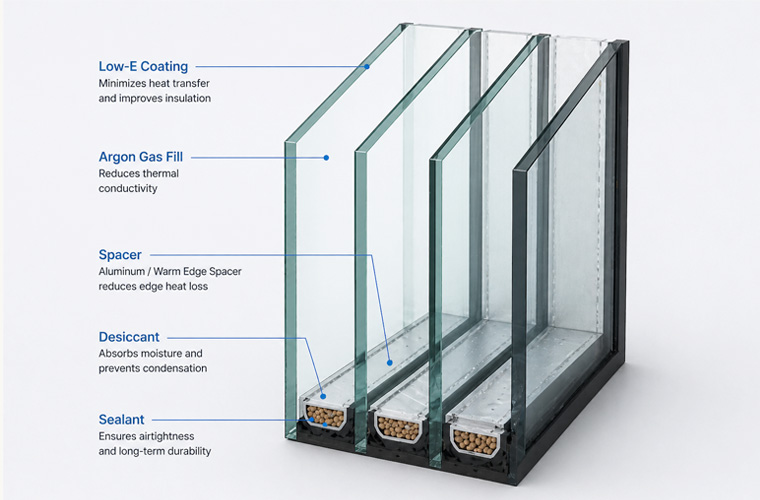

Glass accounts for 80% of the facade surface. We offer:
Achieving center-of-glass U-values as low as 0.6 - 1.0 W/m²·K.
Using Technoform or Swisspacer to eliminate thermal bridging at the glass edge.
Argon or Krypton infused units for extreme cold climates.

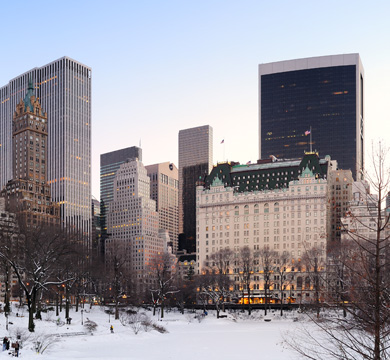

Optimized for Canada and Northern US to prevent ice buildup and heat loss.

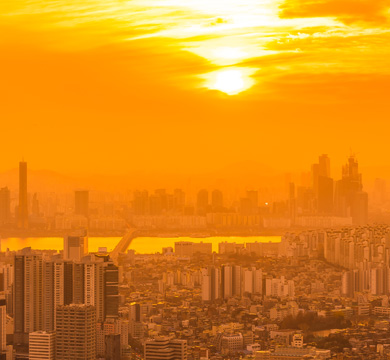

Low SHGC optimization for Middle East and SE Asia to minimize solar heat gain and reduce cooling loads.

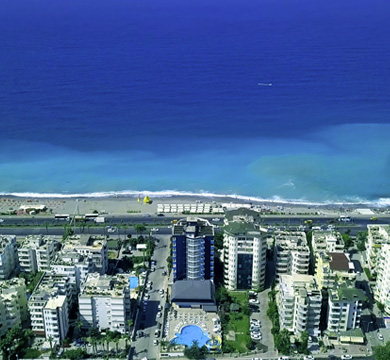

Certified Salt-Spray resistant finishes (QUALICOAT Seaside) and reinforced structural seals.
| Performance Metric | Range (Metric) | Range (Imperial - US) | Standard |
|---|---|---|---|
| 1.2 – 1.8 W/m²·K | 0.21 – 0.32 BTU/h·ft²·°F | NFRC procedures / EN 10077 |
| 0.20 – 0.45 | 0.20 – 0.45 | NFRC / ASTM |
| 70 – 85+ | 70 – 85+ | AAMA 1503 |
| ≤ 0.06 cfm/ft² | ≤ 0.06 cfm/ft² | ASTM E283 |
| 38dB – 48dB | OITC 30 – 38 | ASTM E90 |
Tested in accordance with internationally recognized ASTM performance standards.
Compliant with American architectural glazing and facade system standards.
Certified to meet Australian building safety and performance requirements.
Certified for safety and performance compliance in the Canadian market.
Quality management systems certified for consistent manufacturing excellence.
Laboratory testing accredited under China’s national conformity assessment system.
Independently tested and validated by Australia’s national accreditation authority.
Conforms to essential European health, safety, and environmental requirements.
Verified thermal performance for North American energy standards.
Designed for energy efficiency and reduced environmental impact.
Specifications of wind pressure resistance, sound insulation, corrosion resistance, etc.
