Occupant Wellness
Minimizes sleep disruption and stress; boosts cognitive productivity.
Clarity Is Visibility
Integrated Acoustic Facade & Fenestration Systems for Noise Control
Engineered sound insulation solutions for urban comfort, privacy buildingsUrban noise pollution significantly impacts occupant comfort, productivity, and well-being. Our acoustic facade systems integrate framing, glazing, sealing, and vibration control into a unified building envelope solution.
Home / Integrated Acoustic Facade & Fenestration Systems for Noise Control
Systems
Value Drivers
Acoustic comfort is no longer a luxury—it is a critical driver of building asset value and occupant health.
Asset Marketability
Premium acoustic ratings (STC/Rw) directly increase rental yields and property resale value.
Regulatory Compliance
Exceeds international STC/OITC standards for high-density urban zones.
Noise Specialization
Targeted solutions for airport, rail, highway, and industrial environments.
Home / Integrated Acoustic Facade & Fenestration Systems for Noise Control
System

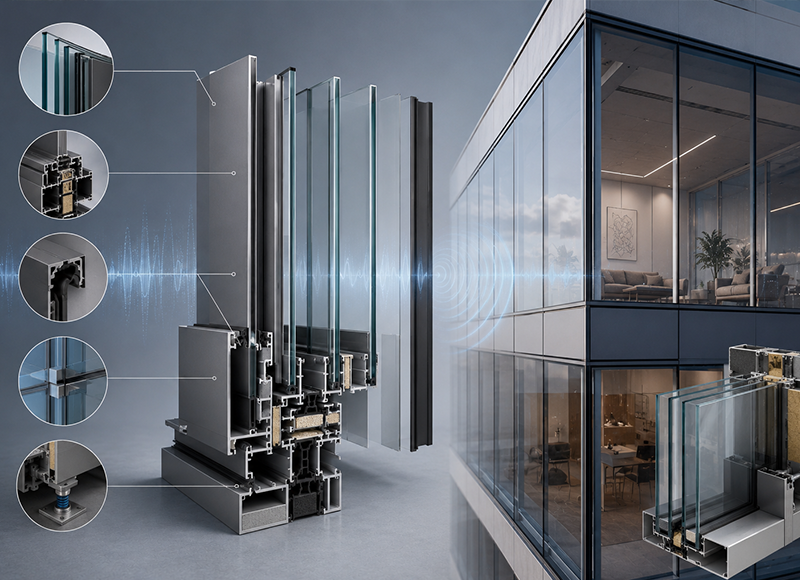

Integrated Acoustic Engineering System.
4-Layer Acoustic Defense System· Frame & Structural Damping System
· High-Performance Glazing System
· Airtight Sealing System
· Structural Vibration Isolation System

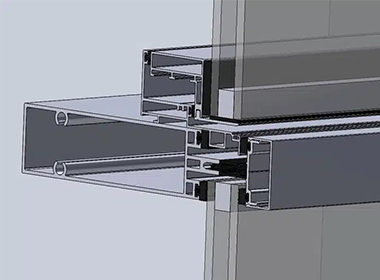

Frame & Structural System
Acoustic Performance Mechanism

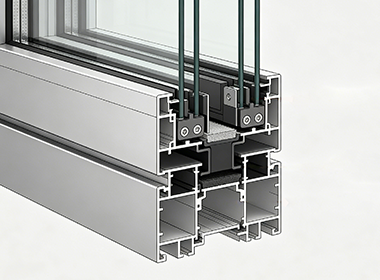

Frame & Structural System
· Multi-chamber aluminum profiles reduce resonance transmission
· Thermal break design minimizes vibration transfer between exterior and interior
· High-precision fabrication ensures airtight structural continuity

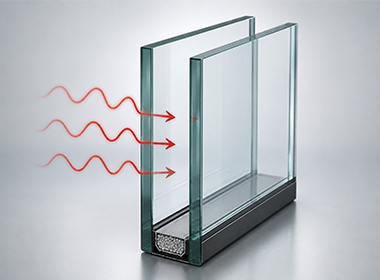

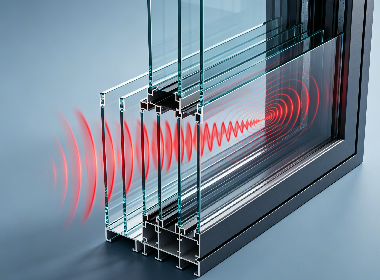

Glazing System
· Laminated acoustic glass (PVB / SGP interlayers) dissipates sound energy
· Asymmetric glass configuration disrupts frequency coincidence effects
· IGU gas-filled cavities improve low-frequency insulation performance
Sealing System
· Multi-layer EPDM gasket design ensures continuous airtight barrier
· Compression hardware enhances sealing pressure at contact points
· Acoustic-grade sealants eliminate micro leakage at joints
Vibration Isolation System
· Decoupled facade anchoring reduces building-borne vibration (HVAC, elevators, transit)
· Structural separation minimizes transmission of low-frequency noise
· Facade operates as a unified acoustic envelope system
Performance Data
| Metric | Range (Metric) | Range (US) | Standard |
|---|---|---|---|
| Sound Reduction (Rw / STC) | 38–48 dB | 35–45 STC | ISO 10140 / ASTM E90 |
| OITC | 30–40 | 30–40 | ASTM E1332 |
| Air Infiltration | ≤ 0.06 cfm/ft² | ≤ 0.06 cfm/ft² | ASTM E283 |
| Glass Thickness | 20–40 mm | 0.8–1.6 in | Project-specific |
Key benchmark: Typical systems achieve STC 35–45, significantly above standard urban facade performance levels.
Compliance & Certification
Our facade systems are designed and tested to meet major international performance standards,ensuring compliance with local building codes and project requirements across North America, Australia, and other global markets.
ASTM
ASTM
ASTM
ASTM
ASTM
ASTM
ASTM
ASTM
ASTM
Global Project Experience

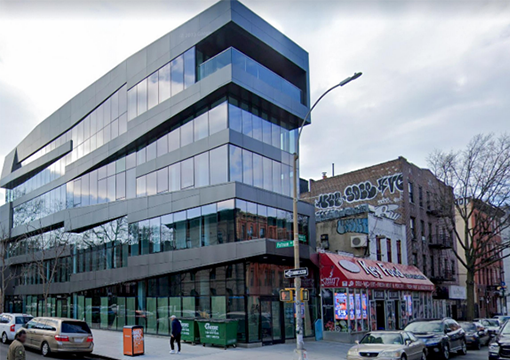

North America – Residential High-Rise
· Noise source: highway (>75 dB)
· System: unitized curtain wall + thermal break + laminated asymmetric glazing
· Result: up to 42 dB indoor noise reduction
- USA

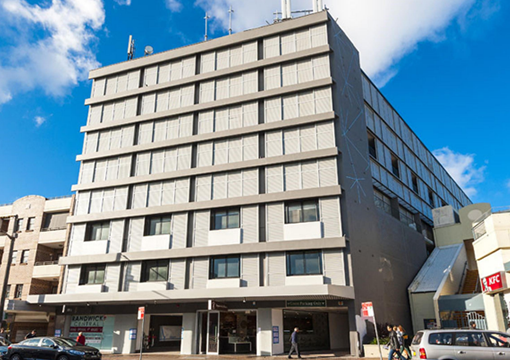

Australia – Urban Apartment
· Noise source: dense city environment
· System: acoustic laminated glazing + optimized sealing
· Result: meets local acoustic compliance standards
- Australia

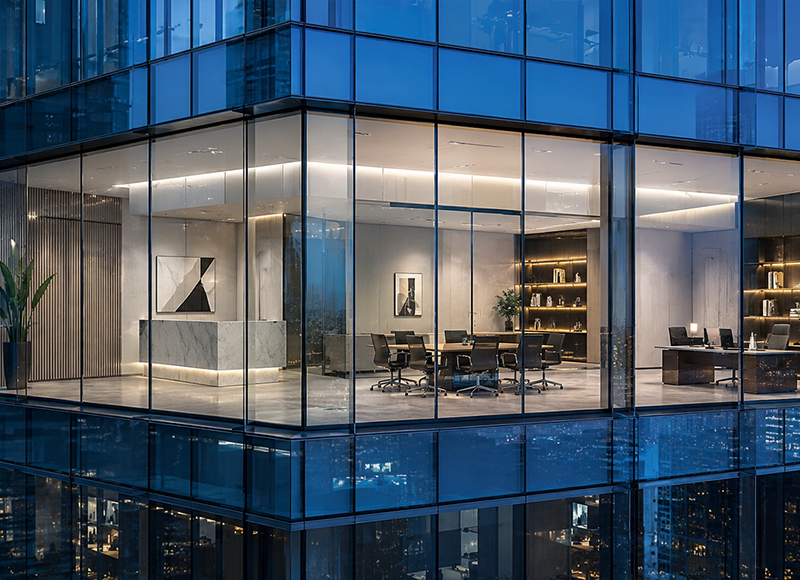

Middle East – Office Tower
· Noise source: urban congestion
· System: double-glazed laminated facade system
· Result: significant perceived noise reduction
- Australia

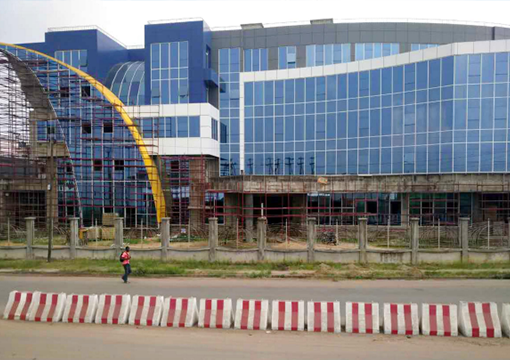

Africa – Institutional Building
· Noise source: mixed urban noise
· System: acoustic curtain wall with airtight envelope
· Result: stable indoor acoustic comfort
- Cameroon
application
Applications Across Building Types
CTA
Build a Quieter, More Comfortable Space
Looking for a reliable acoustic facade and window system supplier?
Contact us to request technical data or project consultation.Request Acoustic Datasheet
Resources & Certifications
All the proof you need — standards, guides, and knowledge to support your project.
Performance Guides
Specifications of wind pressure resistance, sound insulation, corrosion resistance, etc.
