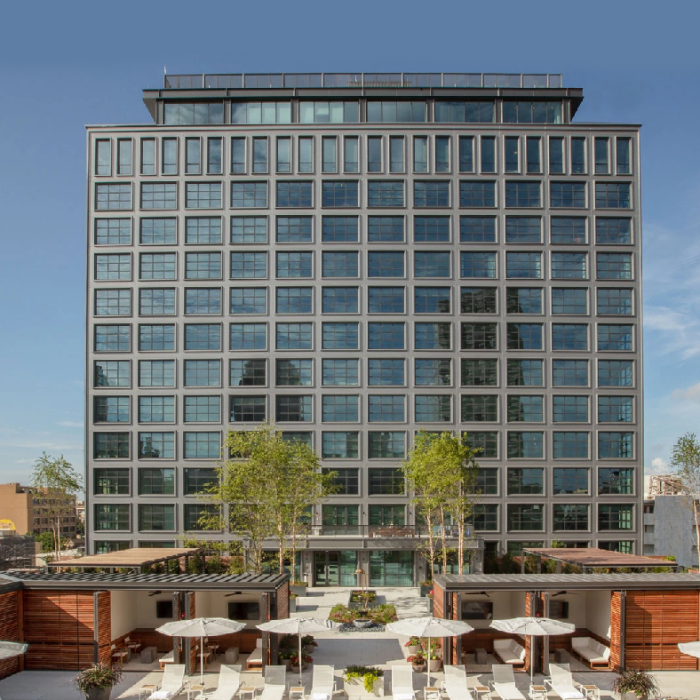

Aluminum Storefront System Window wall system Commercial Glass Facade Manufacturer Fowall
| Share | |
|---|---|
| Categories | Window Wall Systems |
| Brand | FOWALL Curtain Wall System Supplier |
| type | window wall |
| Material | Aluminum Alloy + Tempered Glass |
| Glass Type | Double Glazing / Laminated Glass / Low-E Glass / Triple Glazing |
| System Type | Unitized / Semi-unitized / Stick-built |
| Surface Treatment | Powder Coating / PVDF Coating / Anodized |
Detail Information
window wall system – Product Overview
The window wall system is a modern facade solution widely used in high-rise residential and commercial buildings. Installed between floor slabs, it combines the advantages of curtain wall aesthetics with cost-effective installation. Featuring large glass panels and thermally efficient aluminum framing, it delivers excellent daylighting, energy performance, and architectural appearance.
Why Choose Our Aluminum Glass window wall system
✔ High Structural Stability for High-Rise Buildings
Engineered with mechanically fixed aluminum framing, the system delivers excellent performance under wind load and seismic conditions.
✔ Cost-Effective Commercial Solution
Lower manufacturing and installation costs compared to unitized curtain wall systems, ideal for budget-controlled projects.
✔ Flexible Architectural Design
Supports various:
· Glass types (Low-E, laminated, double glazing)
· Surface finishes (PVDF, anodized, powder coating)
· Colors and facade styles
✔ Easy Installation & Maintenance
· On-site assembly allows flexible adjustments
· Convenient for long-term repair and replacement
· Suitable for international construction projects
✔ Proven Performance & Compliance
· Meets ASTM and AAMA standards
· Excellent water tightness and air sealing
· Long-term corrosion resistance for coastal environments
Technical Performance
| Item | Performance | |
| Wind Load Resistance | 3000–7000 Pa | |
| Water Tightness | ≥ 300–600 Pa | |
| Air Infiltration | ≤ 0.06–0.3 cfm/ft² | |
Thermal Performance | 1.2–2.5 W/m²·K | |
| Acoustic Insulation | 35–50 dB | |
Seismic Performance | ±20–25 mm Inter-story drift | |
Corrosion Resistance | 2000h Salt Spray Test | |
Applications – Commercial Projects
· Office Buildings
· Shopping Malls
· Hotels
· Commercial Complexes
· Public Infrastructure
This aluminum glass curtain wall facade is widely used in modern urban architecture requiring both performance and aesthetics.
FAQ – Curtain Wall System
Q1: What is the difference between visible frame and unitized curtain wall?
Visible frame systems are installed on-site and are more cost-effective, while unitized systems are pre-assembled in factories.
Q2: Is this system suitable for high-rise buildings?
Yes, it is designed to meet high wind load and seismic performance standards.
Q3: Can the glass and color be customized?
Yes, we offer full customization for glass types, coatings, and aluminum finishes.
Q4: What standards does the system comply with?
It complies with ASTM, AAMA, and international facade standards.
Q5: Do you provide project support?
Yes, we provide:
· Shop drawings
· Engineering solutions
· Installation guidance
· OEM/ODM services
